Metal CastingSee Video Below

One of the most recognized and highly specialized metal casting companies in China today, ChinaSavvy is a Western owned metal castings company operating to ISO 9001:2008 standards.

Metal Casting Process

A known and used process for thousands of years, metal casting involves the pouring of a molten metal into what is called the metal casting molds, containing cavities in the desired shape. Allowing the metal to cool and solidify, the casting is broken out or ejected from the mold. This part then, in some cases, undergo further machining and finishing processes.

The two main branches of metal casting processes are:

- Expandable Mold

This mold is capable of producing only one metal casting (as the mold is destroyed in the ejection process) and intricate geometries are achievable when using these types of molds. Furthermore, binders are used in order to help the mold material to keep its forms and are usually made of plaster, sand or similar materials.

- Permanent Mold

This type of mold is capable of producing a number of castings )(as it is has sections capable of opening and closing), but limits the shapes of parts. Molds of this type is usually made of metal or a refractory material.

Pattern and Pattern Material

A geometric replica of the metal casting, patterns are required for expandable mold processes. These patterns are usually slightly bigger, compensating for the shrinkage that commonly occurs during the cooling and solidification process. Parts made using expandable molds generally require a secondary manufacturing process (like machining).

Machining and other secondary process do increase cost, but by increasing the machining allowance, one also increases the surface finish, part dimension as well as compensate for a number of variables.

The material used to create the pattern depends on a number of factors, including the type of metal casting process used, the mold used, the cast's desired size and geometry, the number of casts to be produced using the pattern as well as the desired tolerance and dimensional accuracy required.

The Cores

Used in casting that have internal geometries, a core is simply an inverse replica of the desired internal features of the part being casted. These cores are meticulously designed in order to compensate for shrinkage, and is made of the same material as the pattern. Like the pattern, the core is ejected once the molten metal; has cooled and solidified.

Chaplets are used in cases where structural support is needed in order to help keep the core in place. These chaplets are made of a material that has a higher melting point than the material being poured, allowing it to become a part of the part as the molten metal solidifies.

The Mold

A mold consists of the cope (which is the top) and the drag (which is the bottom). Patterns are then placed inside molds to leave behind the pattern impression.

Parting lines are formed between the cope and the drag, allowing for the mold to be opened and the pattern to be removed.

After the pattern has been removed, the cores are placed (with chaplets if needed), leaving behind the geometry of the part that has to be casted.

The Gating System

In order for the molten metal to be poured, gating systems need to be added to the mold. These gating systems can be curt by hand or, by using more specialized methods, be added into the pattern along with the part.

The elements of a gating system includes the :

    - Pouring Basin

The location at which the molten metal enters the mold. These basins are designed in such a way as to reduce turbulence.

    - Down Sprue

The location through which the molten metal travels when leaving the pouring basin. Tapered, the down sprue has a reduced cross-section as it moves downwards.

    - Ingate Area

The location through which the molten metal passes after leaving the down sprue and before entering the inner mold area. It is an important factor when it comes to the regulation of the flow of the molten metal.

   - Runners

Passages (almost like tunnels) through which the molten metal is distributed throughout the mold.

    - Main Cavity

This is the impression of the actual part that needs to be casted.

    - Vents

Needed in order to assist the escape of gases formed during the solidification process.

    - Risers

Described as reservoirs for molten metal, risers are responsible for feeding metal to various sections of the mold in order to compensate for shrinkage during the cooling and solidification process. There are four types of risers namely blind risers, open risers, side risers and top risers.

Pouring

The process by which molten metal is delivered into the casting molds, involving the flow of the metal through the gating system and into the casting or cavity.

Factors that influence pouring includes:

    - Pouring Temperature

With a higher temperature than that needed for solidification, the temperature of each metal as well as casting process will differ. Superheat is the difference in temperature between the pouring temperature and the solidification (or cooling) temperature.

    - Pouring Rate

A strict balance in volumetric rate is necessary during the pouring process. If the pouring is too slow, the molten metal can cool and solidify before properly filling the mold, while a 'too-high' pouring temperature can result in turbulence.

    - Turbulence

An inconsistent variation in the speed of the pouring process as well as the direction of flow throughout the molten metal itself, causes what is called turbulence. Turbulence causes mold erosion and can also lead to an increase in the formation of metal oxides, resulting in porosity

Types of metal casting services ChinaSavvy specializes in:

    - Investment Casting for bronze, steel, aluminum and stainless steel.

    - Sand Casting for aluminum, bronze, iron, steel and zinc.

    - Die Casting for zinc, aluminum and magnesium.

    - Permanent Mold Casting for aluminum and zinc.

    - Shell Casting for zinc, aluminum, bronze, iron and steel.

    - Lost Foam Casting for steel, zinc, aluminum, bronze and iron.

Choosing the right metal casting process for your parts or products

With so many types of metal casting processes at your disposal, choosing the right process for your project depends on a number of factors, including the material itself, surface finishes and tolerances required, tooling costs, costs per part as well the volume of your production run.

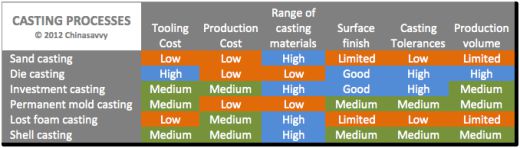

Below is a simplified table outlining each of these important factor, enabling you to choose the right process for your project:



Sand Casting

Die Casting

Investment Casting

Permanent Mold Casting

Lost Foam Casting

Shell Casting

Tooling Cost

Low

High

Medium

Medium

Low

Medium

Production Cost

Low

Low

Medium

Low

Medium

Medium

Range of Casting Materials

High

Low

High

Low

High

High

Surface Finish

Limited

Good

Good

Medium

Limited

Medium

Casting Tolerances

Low

High

High

Medium

Low

Medium

Production Volume

Limited

High

Medium

Medium

Limited

Medium

 ChinaSavvy, being a highly specialized metal castings company, also delivers post-casting services, including CNC Machining Polishing, Plating and Coating.
